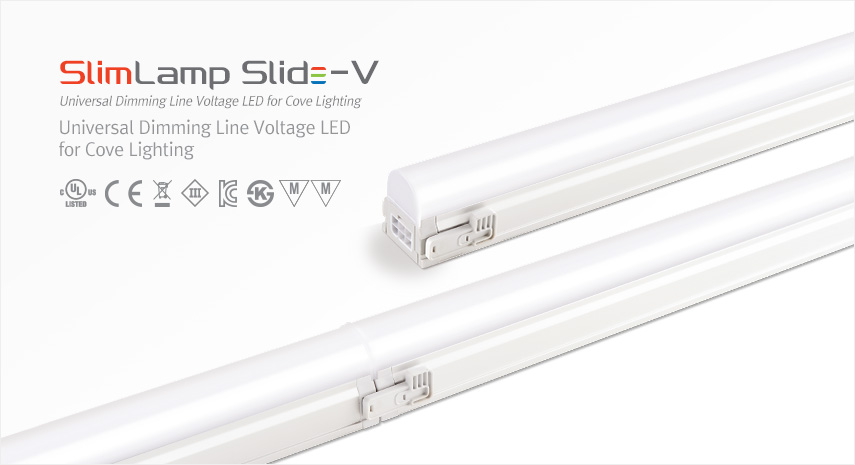

SlimLamp Slid≡-V

SlimLamp_Slid≡-V
    적용사례
  • - Easy slide connecting system
  • - Slim design with seamless lighting
  • - 0-10V dimming integrated ballast
  • - Round/Square Diffuser Available
  • - Slide-Up replacing System
  • - 100-277V Universal Voltage

Various options

다양한특징 다양한특징

Notice

  • - Max.connection(Dimming) : 20pcs
  • - Max.connection(Non dimming) : 400W
  • - 10W(40pcs), 15W(26pcs), 20W(20pcs)
설치방법
Max. connection
Model Name Lamp Power Luminous Flux Energy Efficiency
VSSL10 40K-UNV-C90 9.2 W 730.3 lm 75 lm/W
VSSL15 40K-UNV-C90 14.8 W 1,208.3 lm 82 lm/W
VSSL20 40K-UNV-C90 20.3 W 1,697.4 lm 84 lm/W
  • - Voltage Input : AC100-277V
  • - Color Rendering : Ra > 90
  • - Available Color : 2,200K/2,500K/2,700K/3,000K/3,500K/4,000K/5,700K/li>
  • - Operating Temperature : 0~45℃
  • - Dimming : 0-10V Dimming
규격 규격
Max. connection
Model Name Voltage Input (V) Lamp Power (W) A(mm) B(mm) C(mm)
VSSL10 40K-UNV-C90 AC100~277 9.2 580 32.3 35.2
VSSL15 40K-UNV-C90 AC100~277 14.8 870 32.3 35.2
VSSL20 40K-UNV-C90 AC100~277 20.3 1,160 32.3 35.2
Aceessories
Open power cord Open power cord
Max. connection
VSSLOPC230/T VSSLOPC1/T VSSLOPC2/T VSSLOPC4/T
1800mm(6feet) 300mm(1feet) 600mm(2feet) 1,200mm(4feet)
Connecting cable Connecting cable
Max. connection
VSSLPTC/T VSSLPTC1/T VSSLPTC2/T VSSLPTC4/T VSSLPTC6/T
150mm
(6 inch)		 300mm
(1 feet)		 600mm
(2 feet)		 1,200mm
(4 feet)		 1,800mm
(6 feet)
Mounting bracket Mounting bracket SSL-BRACKET1(A) : 1set = 2pcs
SSL-BRACKET1(B) : 1set = 3pcs
Angled bracket Angled bracket SSL-BRACKET2(A) : 1set = 2pcs
SSL-BRACKET2(B) : 1set = 3pcs
Magnet bracket Magnet bracket SSL-BRACKET-M(A) : 1set = 2pcs
SSL-BRACKET-M(B) : 1set = 3pcs

Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files

 SlimLamp Slid≡-V  IES data
