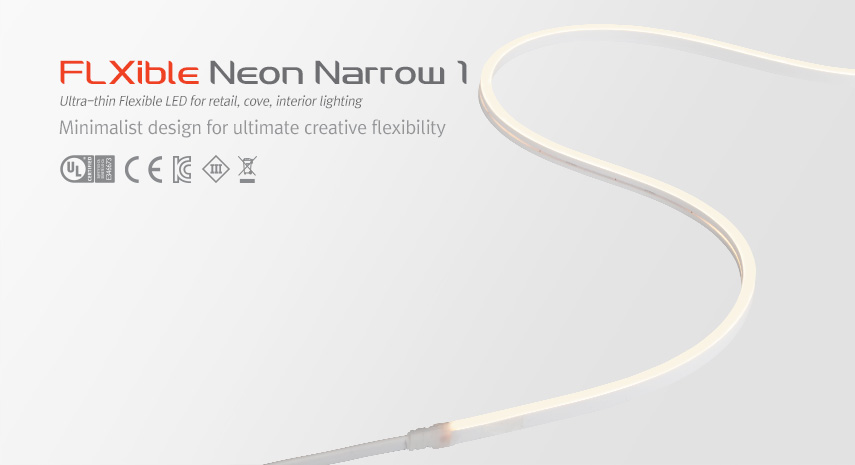

FLXible Neon Narrow 1
- - Seamless Diode Free Illumination
- - Ultra Slim
- - Field Cut 33.3mm (1.31″)
- - Bend Direction Horizontal
- - Dimmable
- - IP67 for Interior and Exterior Applications
- - Available in Standard Lengths of 1,2,3,4,5M Reels
| Model Number | Color Temperature | Lamp Power | Luminous Flux | Lumen/W |
|---|---|---|---|---|
| FNN1 22K-24V-C90 | 2200K | 7.7 W/m | 329.6 lm/m | 42.8 lm/W |
| FNN1 24K-24V-C90 | 2400K | 333.2 lm/m | 43.3 lm/W | |
| FNN1 27K-24V-C90 | 2700K | 372 lm/m | 48.3 lm/W | |
| FNN1 30K-24V-C90 | 3000K | 423.4 lm/m | 55 lm/W | |
| FNN1 35K-24V-C90 | 3500K | 419.2 lm/m | 54.4 lm/W | |
| FNN1 40K-24V-C90 | 4000K | 375.9 lm/m | 48.8 lm/W |
- - Power Input : DC 24V
- - Lamp Power : 7.7 W/m
- - IP Rate : IP 67
- - Color Rendering : Ra > 90
- - Operating Temperature : -20℃ to 50℃

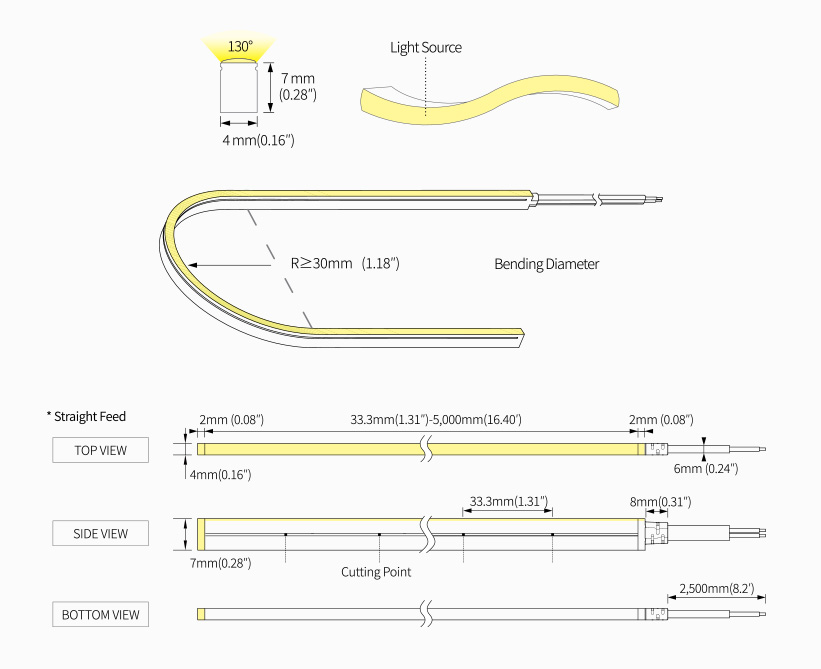

- - Maximum Length : 5,000mm (16.4′)
- - Minimum Length : 33.3mm (1.31″)
- - Minimum Bending Diameter : 30mm(1.18”)
- - Beam Angle : 130°
- - Material : Silicone
 |
FN1 Narrow | FNN1-(color)K-24V-C90-5MFNN1-(color)K-24V-C90-4MFNN1-(color)K-24V-C90-3MFNN1-(color)K-24V-C90-2MFNN1-(color)K-24V-C90-1M | ||||||
|---|---|---|---|---|---|---|---|---|
 |

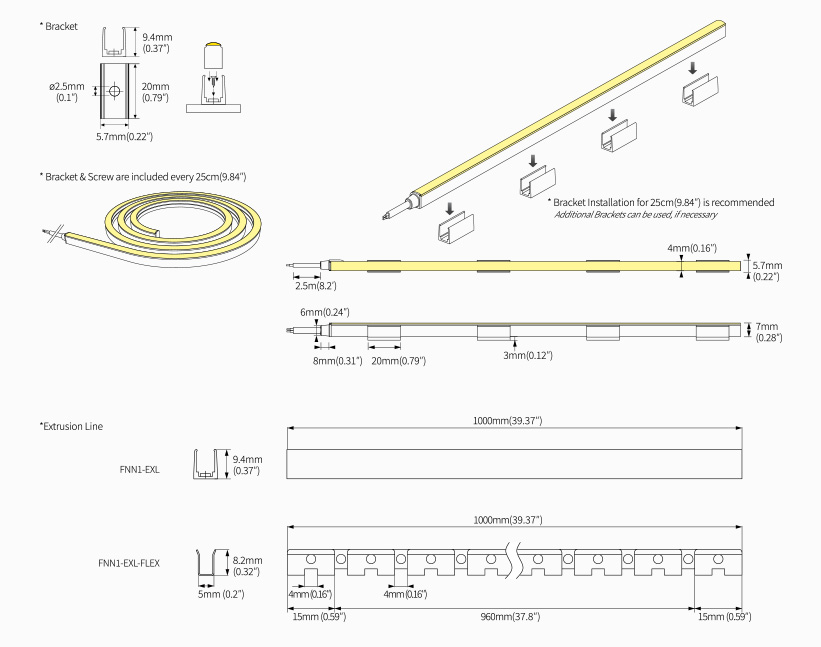

Mounting Brackets | FNN1-BRACKET1 | ||||||
 |
FNN1 Extrusion Line | FNN1-EXL (1,000mm) | ||||||
 |
FNN1 Recessed Extrusion | FNN1-EXR-SV (1,000mm) FNN1-EXR-BK (1,000mm) |
||||||
 |
FNN1 Flexible Extrusion Line | FNN1-EXL-FLEX (1,000mm) | ||||||
 |
Strap | FNN1-Strap*Order Separately | ||||||
 |
End Cap | FNN1-End Cap*Order Separately | ||||||
 |
12 Port Hub | 12 Way distributor Included with Cord and Plug drivers.Order separately for 3rd Party Drivers | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver | FLC200-24V/T (200W) with 12way disributor Spec | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 | FDC-L10 (Max. 100W) Video Manual | ||||||
 |
Dimming Interface | FDA-L2MO (0-10V/1-10V, DMX512) Max. 200W (100W/CH, 2CH) FDA-L5M (DMX512) Max. 200W (50W/CH, 5CH) Manual |
||||||
 |
Dimming Interface (Dail) | FDD-L1DA Max. 200W (100W/CH, 1CH) |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
