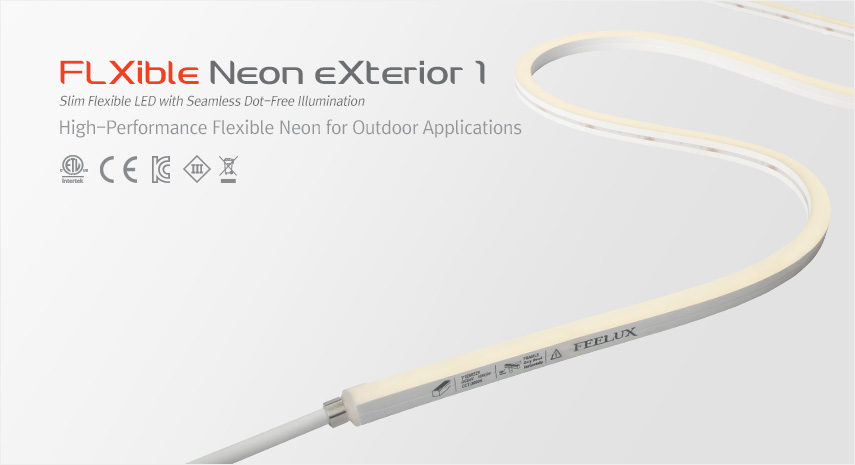

FLXible Neon eXterior 1
- - Seamless Spot-Free Illumination
- - Ultra Slim Design
- - Close Pitch LEDs
- - Horizontal Bending Flexibility
- - Dimmable
- - Optimized for Outdoor Use (IP 67 Rated)
- - Dow Chemical SILASTIC™ ET-7021 silicone material high transparency and strength
- - Field Cut-table (35.7mm)
- - Available in Standard Length 1, 2, 3, 4, 5 M Reels
| Model Number | Color Temperature | Lamp Power | Luminous Flux | Lumen/W |
|---|---|---|---|---|
| FNX1 30K-24V-C90 | 3,000K | 10 W/m | 563.5 lm/m | 58.87 lm/W |
- - Power Input : DC 24V
- - Lamp Power : 10 W/m
- - IP Rate : IP67 with Factory Termination(Customized Length Available)
- - Color Rendering : Ra > 90
- - Operating Temperature : -20℃ to 50℃

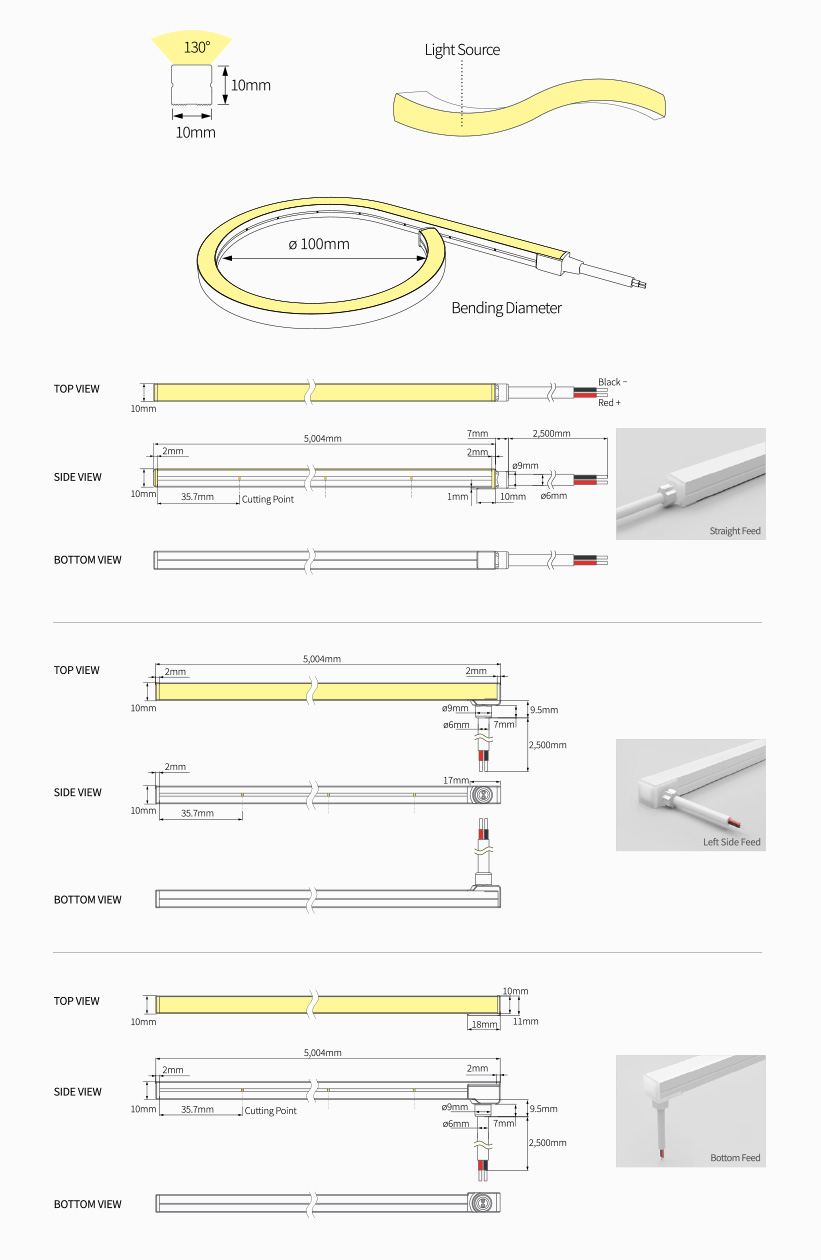

- - Maximum Length : 5,033.7mm
- - Minimum Length : 35.7mm
- - Minimum Bending Diameter : 100mm
- - Beam Angle : 130°
- - Material : Silicone
 |
FLXible Neon eXterior1 | FNX1-(color)K-24V-C90-5m FNX1-(color)K-24V-C90-4m FNX1-(color)K-24V-C90-3m FNX1-(color)K-24V-C90-2m FNX1-(color)K-24V-C90-1m |
||||||
|---|---|---|---|---|---|---|---|---|
 |
FLXible Neon eXterior1Left Side Feed | FNX1-(color)K-24V-C90-LS-5m FNX1-(color)K-24V-C90-LS-4m FNX1-(color)K-24V-C90-LS-3m FNX1-(color)K-24V-C90-LS-2m FNX1-(color)K-24V-C90-LS-1m |
||||||
 |
FLXible Neon eXterior1Bottom Feed | FNX1-(color)K-24V-C90-BS-5m FNX1-(color)K-24V-C90-BS-4m FNX1-(color)K-24V-C90-BS-3m FNX1-(color)K-24V-C90-BS-2m FNX1-(color)K-24V-C90-BS-1m |
||||||
 |

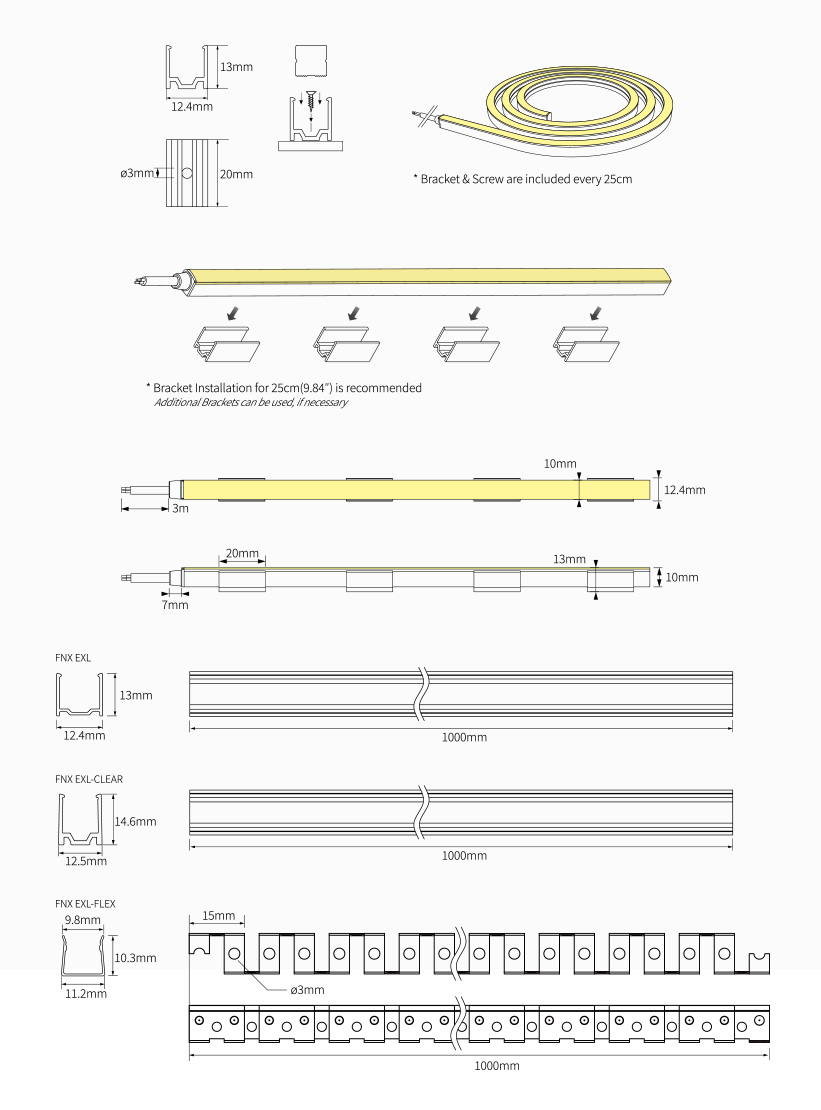

Mounting Brackets | FNX-Bracket | ||||||
 |
Extrusion Line | FNX-EXL(1,000mm) | ||||||
 |
PC Extrusion Line | FNX-EXL-Clear(1,000mm) | ||||||
 |
Flexible Extrusion Line | FNX-EXL-FLEX(1,000mm) | ||||||
 |
Dimming Interface(0-10V) | FDC-L10Max. 100W(100W/CH, 1CH) Video Manual | ||||||
 |
Control Interface(DALI) | FDD-L1DAMax. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface | FDA-L2MO(0-10V/1-10V, DMX512)Max. 200W (100W/CH, 2CH)FDA-L5M (DMX512)Max. 200W (50W/CH, 5CH) | ||||||
 |
Dimming Interface(CASAMBI, Bluetooth) | FDD-L2B(Max, 200W) | ||||||
 |
Dimming Interface(0-10V/1-10V) | FDD-L20 | ||||||
 |
12 Port Hub | D12P-HUB Included with Cord and Plug drivers.Order separately for Hard Wire or 3rd Party Drivers | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver | FLC200-24V/T (200W) with 12way disributor Spec |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
