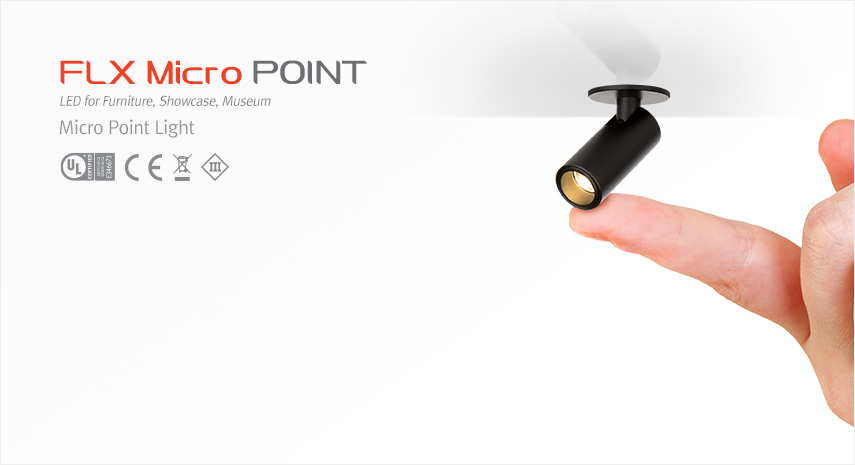

FLX Micro POINT

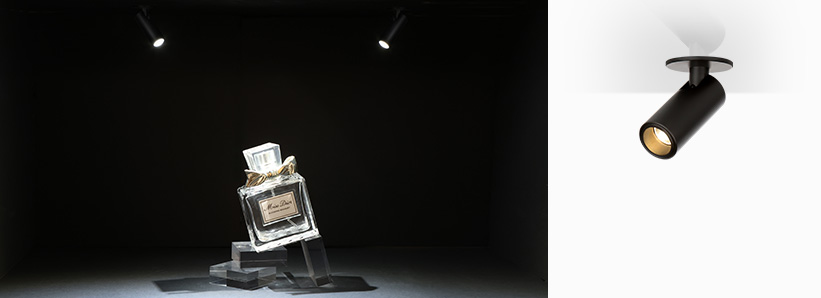

- - Miniature lighting for furniture, showcase, museum
- - Super slim design
- - Rotatable head
- - Constant voltage DC 24V driver
- - Available in black, white (Special order option: gold, silver)
- - Various beam angles (15°, 30°)
- - Dimmable
| Model Name | Lamp Power | Luminous Flux | Lumen/W |
|---|---|---|---|
| MCR-PT1 30K-24V-30-BK | 1.2W | 78 lm | 65 lm/W |
- - Power Input : DC 24V
- - Color Rendering : CRI > 90
- - Color Temperature : 2700K, 3000K, 3500K, 4000K
- - Beam Angle : 15°, 30º
- - Operating Temperature : 0 ~ 45°C
 |
FLX Micro POINT | MCR-PT1 30K-24V-15-BK MCR-PT1 30K-24V-30-BK |
||||||
|---|---|---|---|---|---|---|---|---|
 |
12Port Hub | D12P-HUB Included with Cord and Plug drivers. Order separately for Hard Wire or 3rd Party Drivers |
||||||
 |
Door and motion detection sensor (DC) : FLS-M24V | Voltage : DC 24V | ||||||
 |
Human-body detection sensor (DC) : FLS-P24V | Voltage : DC 24V | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
Dimming Interface (1-10V) : FDC-L10 |
Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10,DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dail) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
 |
Switch (Zigbee) | FSM-Z1 : Wireless Control |
