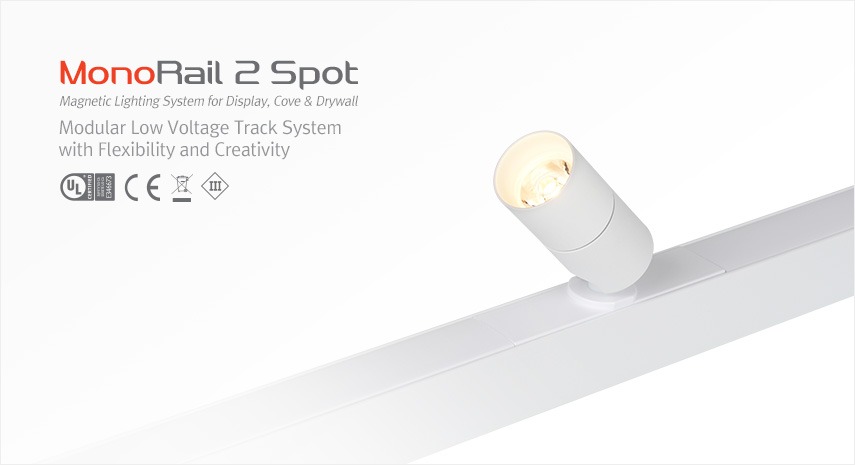

MonoRail 2 Spot
- - High-end Linear Fixture with Spot-Free illumination
- - Mini Spotlight with various beam angle and dimming touch sensor
- - Easy installation with magnetic track system
- - Various aluminum track and components available
- - Optional illuminated power feed
Various options
Extrusion Types
Max. connection MonoRail : 180W in one row (Single power feed) / LED Driver
| Model Name | Max. units for LED Driver | ||
|---|---|---|---|
| 24V/30W | 24V/75W | 24V/200W | |
| NMS3 40K-24V | 11 | 28 | 76 |
| NMP3 40K-24V-C90 | 12 | 28 | 76 |
| NMP4 40K-24V-C90 | 7 | 19 | 52 |
| NMP8 40K-24V-C90 | 3 | 9 | 25 |
| Model Name | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| NMS3 40K-24V-C90 | 2.8 W | 230 lm | 80 lm/W |
| NMS3 40K-24V-C90-T | 2.8 W | 230 lm | 80 lm/W |
| NMP3 40K-24V-C90 | 2.6 W | 179 lm | 70 lm/W |
| NMP4 40K-24V-C90 | 3.8 W | 265 lm | 69 lm/W |
| NMP8 40K-24V-C90 | 7.7 W | 540 lm | 71 lm/W |
- - Power Input : DC24V
- - Color Rendering : Ra>90
- - Available Color : 2,700K/3,000K/3,500K/4,000K
- - Operating Temperature : 0~45℃
| Model Name | Power Input (V) | Lamp Power (W) | A (mm) |
B (mm) |
B' (mm) |
C (mm) |
C' (mm) |
|---|---|---|---|---|---|---|---|
| NMP3 40K-24V-C90 | DC 24 | 2.6 | 97 | 18 | 21.4 | 16.5 | 24.7 |
| MNP4 40K-24V-C90 | DC 24 | 3.8 | 145 | 18 | 21.4 | 16.5 | 24.7 |
| MNP8 40K-24V-C90 | DC 24 | 7.7 | 288 | 18 | 21.4 | 16.5 | 24.7 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V-P/T | 180 | 60 | 32 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |
MonoRail2 Spot |
* Available Color : Black, White |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MonoRail2 Spot (Touch Sensor) |
* Available Color : Black, White |
||||||||||||
 |
LED Power Connector : NMP3 40K-24V-C90-L134P-BK | MonoRail2 3W (134mm) DC24V LED Power Connector * Available Color : Black, White |
||||||||||||
 |
Power Connector : NMPPC-VE-BK | Monorail2 Vertical Power Connection * Available Color : Black, White |
||||||||||||
 |
LED 90° Connector : NMP5 40K-24V-C90-90-BK | Monorail2 90° Connector 5W * Available Color : Black, White |
||||||||||||
 |
90°Connector : NMPCPL-90-BK | * Available Color : Black, White | ||||||||||||
 |
LED Corner In Connector : NMP5 40K-24V-C90-CI-BK | Monorail2 Corner in Connector 5W * Available Color : Black, White |
||||||||||||
 |
Corner In Connector : NMPCPL-CI-BK | * Available Color : Black, White | ||||||||||||
 |
Direct Connector : NMPCPL-VE-BK | * Available Color : Black, White | ||||||||||||
 |
Surface Track (600mm/1,200mm/2,400mm) |
|
||||||||||||
 |
Recessed Track (600mm/1,200mm/2,400mm) |
|
||||||||||||
 |
Trimless Track (600mm/1,200mm/2,400mm) |
|
||||||||||||
 |
Track Cover : NMP-TRACK-COVER-BK | * Available Color : Black, White | ||||||||||||
 |
Surface Track 90°Cap : NMP-EXS-90-CAP-BK | * Available Color : Black, White | ||||||||||||
 |
Surface Track Corner In Cap : NMP-EXS-CI-CAP-BK | * Available Color : Black, White | ||||||||||||
 |
Fixture Remover : FLT-REMOVER | |||||||||||||
 |
Track Joint Bracket : NMP-JOINT BRACKET | |||||||||||||
 |
Standard mounting bracket : NMP-BRACKET1 | NMP-BRACKET1 : 1set = 2pcs | ||||||||||||
 |
Pendent Suspension Power Kit : NMP-SK-POWER | * Available Color : Black, White | ||||||||||||
 |
Pendent Suspension Bracket : NMP-SK-BRACKET | * Available Color : Black, White | ||||||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor Spec |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
