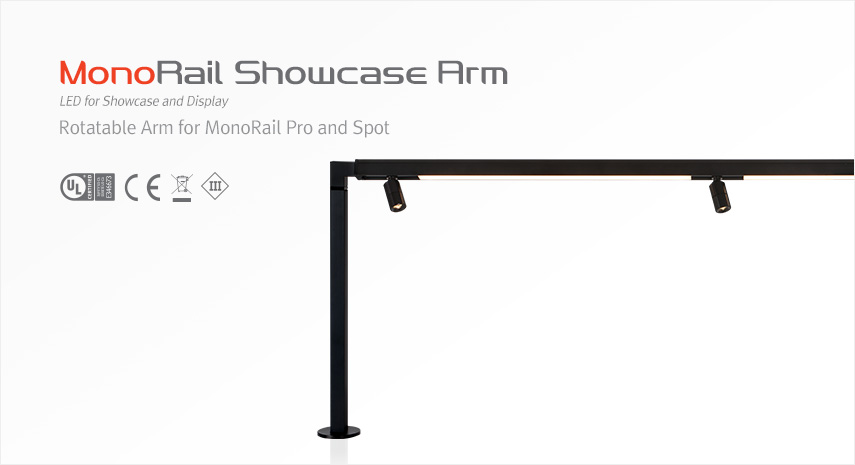

MonoRail Showcase Arm

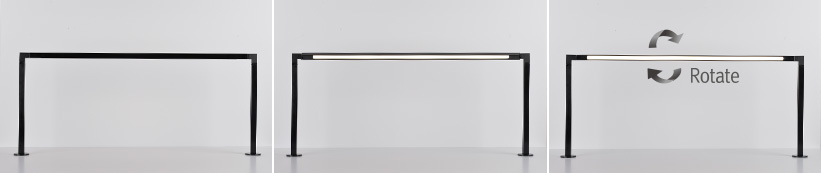

- - Sleek aluminum body with rotating top bar

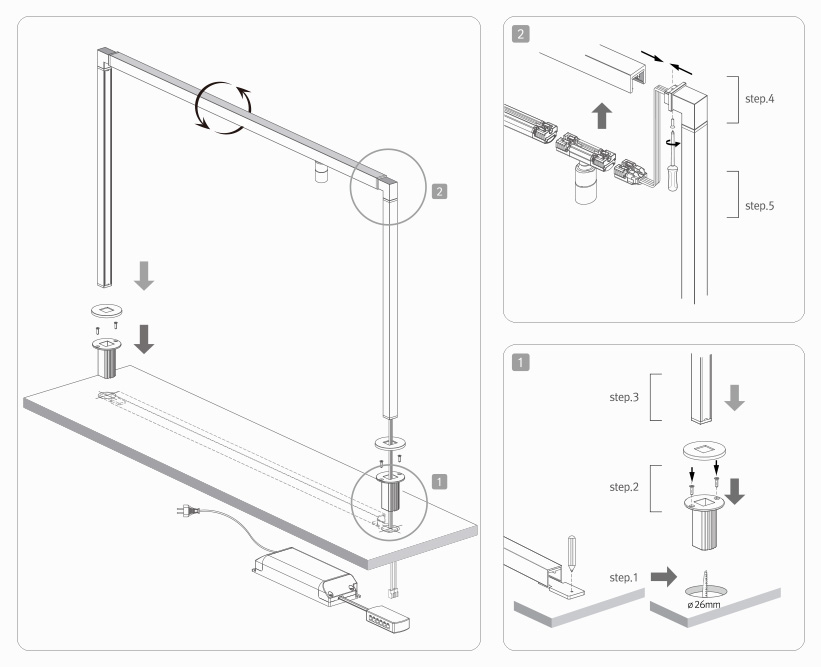

- - Easy assembly with MonoRail Pro(MNP) and Spot(MRS)
- - Various length available

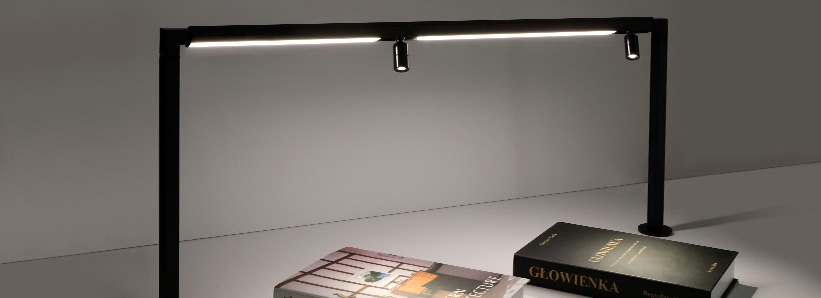

- - Ideal for showcase , exhibit, museum design
- - Dimmable
Various options
| Model Name | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| NMS3 40K-24V-C90 | 2.8 W | 230 lm | 80 lm/W |
| NMS3 40K-24V-C90-T | 2.8 W | 230 lm | 80 lm/W |
| NMP3 40K-24V-C90 | 2.6 W | 179 lm | 70 lm/W |
| NMP4 40K-24V-C90 | 3.8 W | 265 lm | 69 lm/W |
| NMP8 40K-24V-C90 | 7.7 W | 540 lm | 71 lm/W |
- - Power Input : DC24V
- - Color Rendering : Ra>90
- - Available Color : 2,700K/3,000K/3,500K/4,000K
- - Operating Temperature : 0~45℃
| Available with | Lamp Power (W) | Lumens (4000K) | Beam Angle |
|---|---|---|---|
| MRS1 40K-24V-BK | 1W | 95 lm | 15°, 35° |
| MNP1 40K-24V-BK | 1W | 113 lm | - |
| MNP4 40K-24V-BK | 4W | 362 lm | - |
| MNP8 40K-24V-BK | 8W | 722 lm | - |

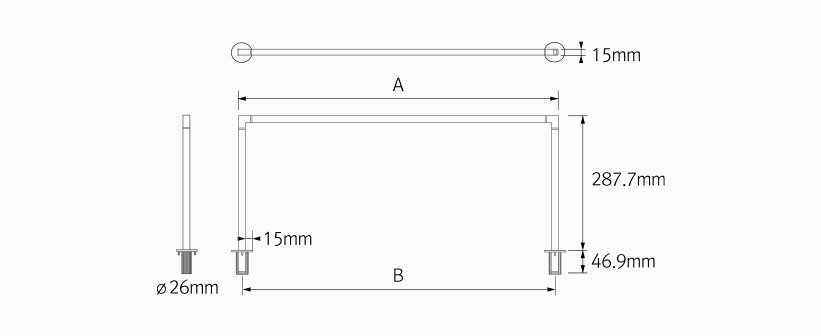

| A (Top Length) |
B (Recommended Distance for Mounting Holes) |
|---|---|
| 15.6″(396.5mm) | 15″(381mm) |
| 26.6″(676.5mm) | 26″(661mm) |
| 37.6″(955.5mm) | 37″(940mm) |
| 48.6″(1234.5mm) | 48″(1219mm) |
 |
MonoRail_Showcase_Arm | MNR-SA-KIT | ||||||
|---|---|---|---|---|---|---|---|---|
 |
MonoRail Showcase Arm Top Bar | MNR4-SA-Kit-TB MNR7-SA-Kit-TB MNR11-SA-Kit-TB MNR15-SA-Kit-TB |
||||||
 |
MonoRail Spot | MRS1 (color)K-24V-BK-15 MRS1 (color)K-24V-BK-35 |
||||||
 |
MonoRail Pro | MNP1 (color)K-24V-BK MNP4 (color)K-24V-BK MNP8 (color)K-24V-BK |
||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
