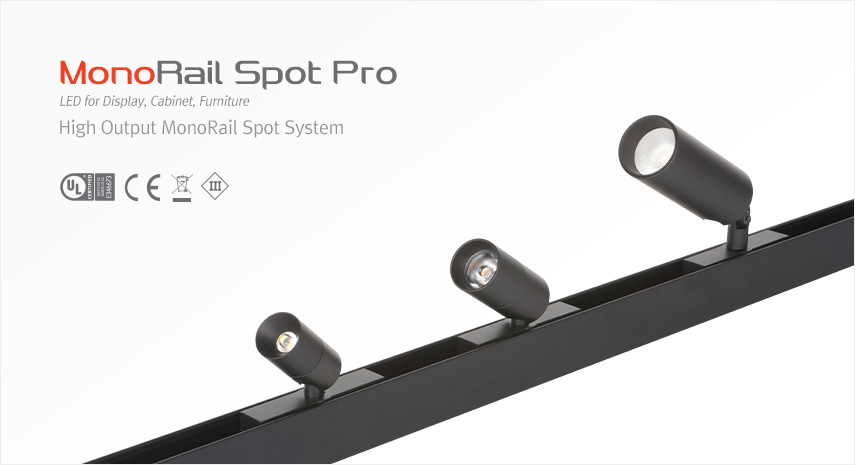

MonoRail Spot Pro
- - Super slim track lighting system with various spot option

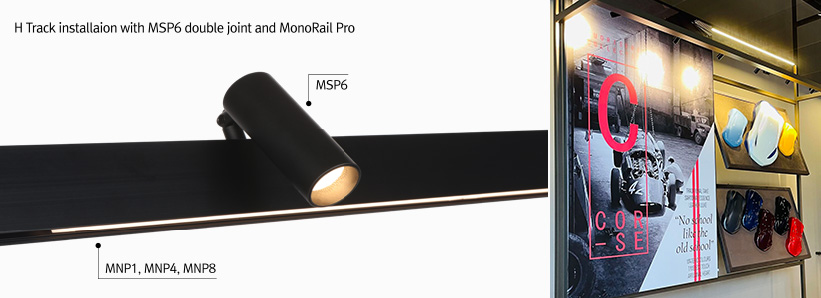

- - Pendant suspension option with H track
- - Compatible and linkable with MonoRail system

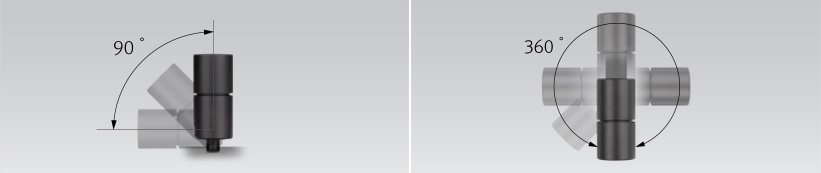

- - Slide and Swivel High Output LED Spotlight
- - Suitable for furniture and interior design
- - Simple Plug & Play connection to the power track
- - Available in Black, White
- - With constant voltage DC 24V driver
- - Double joint head available for 6W spot
Various options
| Model Name | Lamp Power | Luminous Flux | Efficiency | Beam Angle |
|---|---|---|---|---|
| MSP1 40K-24V-BK-15 | 1.3 W | 91 lm | 70 lm/W | 15°, 35° |
| MSP3 40K-24V-BK-28 | 2.6 W | 254 lm | 98 lm/W | 28°, 40°, 50° |
| MSP6 40K-24V-BK-25 | 5.6 W | 394 lm | 70 lm/W | 25°, 38°, 50° |
- - Power Input : DC24V
- - Color Rendering : Ra>90
- - Available Color : 2,700K/3,000K/3,500K/4,000K
- - Operating Temperature : 0~45℃
 |

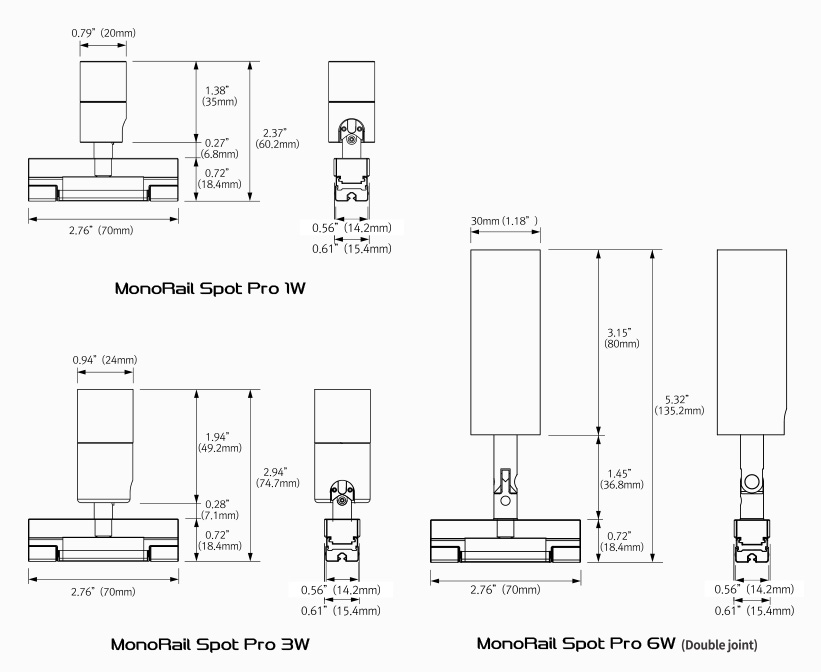

MonoRail Spot Pro 1W | MSP1 40K-24V-BK-15 MSP1 40K-24V-BK-35 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MonoRail Spot Pro 3W | MSP3 40K-24V-BK-28 MSP3 40K-24V-BK-40 MSP3 40K-24V-BK-50 |
||||||||||
 |
MonoRail Spot Pro 6W (Double Joint) | MSP6 40K-24V-BK-25 MSP6 40K-24V-BK-38 MSP6 40K-24V-BK-50 |
||||||||||
 |
Power supply cable to the MNR-Rail : MNRPC (2,500mm) | 120W in one row (w/ terminal block) 180W in one row (w/o terminal block) * Available Color : White, Black |
||||||||||
 |
Connecting cable between MNR-Rail |
|
||||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor | ||||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) | ||||||||||
 |
Dimming Interface (0-10/1-10V, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||||||
 |
Dimming Interface (Dail): FDD-L1DA | Max. 200W (100W/CH, 1CH) | ||||||||||
 |

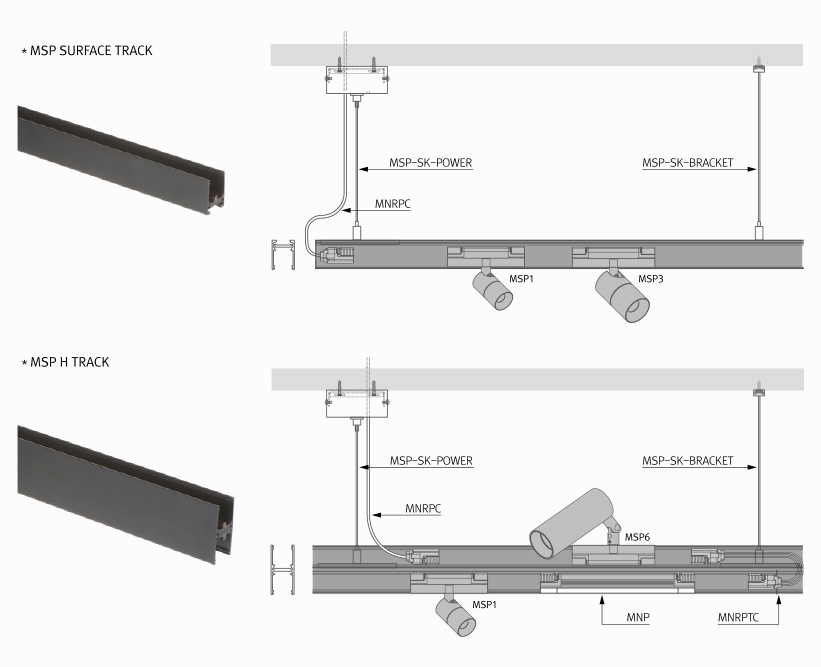

MSP Surface Track (1,200mm) *With MNR-Rail Track |
|
||||||||||
 |
MSP H Track (1,200mm) *With MNR-Rail Track |
|
||||||||||
| ▼Accessories for MonoRail Spot Pro Pendant | ||||||||||||
 |
Pendent Suspension Power Kit : MSP-SK-POWER | * Available Color : Black, White | ||||||||||
 |
Pendent Suspension Bracket : MSP-SK-BRACKET | * Available Color : Black, White | ||||||||||
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
