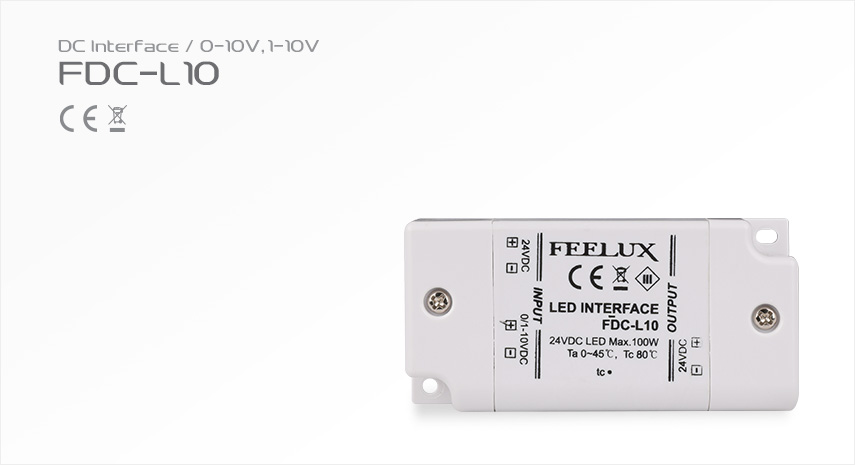

FDC-L10
| Channel | Input Signal | Output Signal | Output Load | Rated Input | Weight |
|---|---|---|---|---|---|
| 1CH | DC 0-10V, DC 1-10V | PWM | DC 24V LED Max. 100W | DC 24V | 60g |

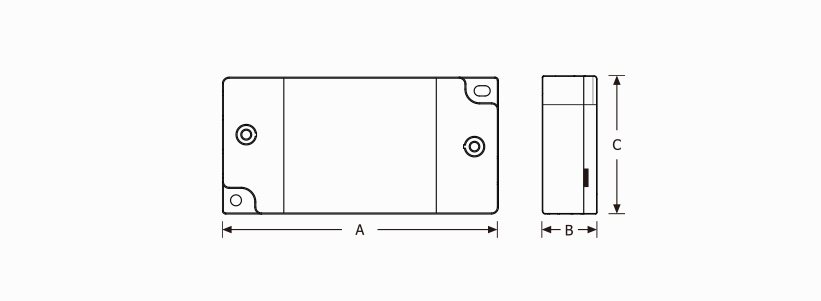

• Dimension
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FDC-L10 | 78 | 16 | 40 |

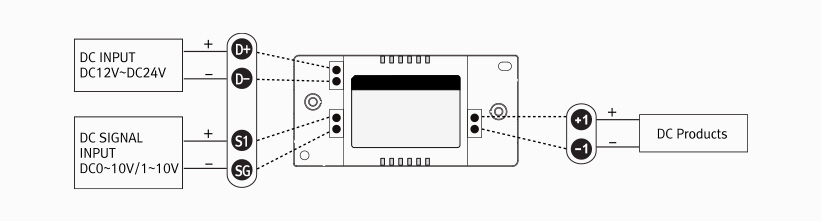

• Wiring
