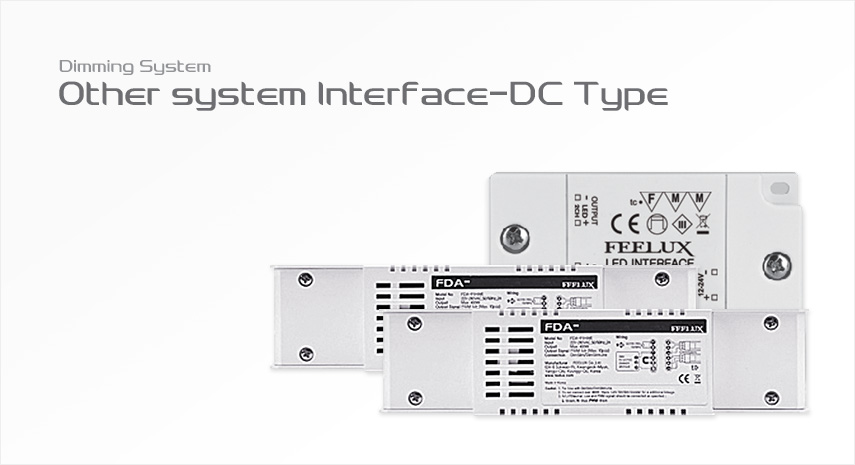

Other system Interface-DC type
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max.200W(100W/CH
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max.200W(50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V(CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
