FLXible Neon 360

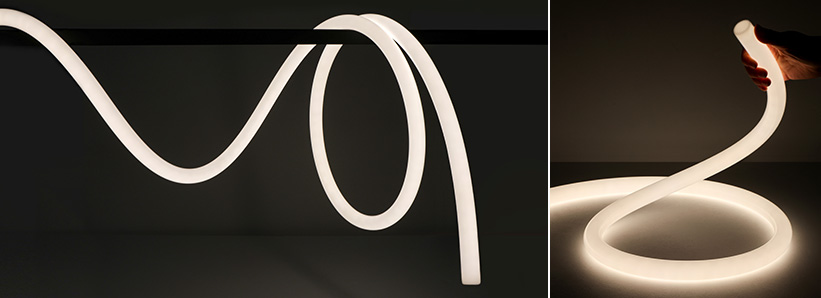

- - 360° seamless flexible luminaire
- - Bend Direction Horizontally and Vertically
- - Indoor Application
- - Field Cuttable 50mm(1.97”)
- - Available in Standard Lengths 5M (16.4ft)
- - Architectural and interior contour lighting
- - Dimmable
- - Tunable, RGB available
| Model Name | Color Temperature | Luminous Flux (Full Brightness) |
Lumen/W | |
|---|---|---|---|---|
| FN360 24K-24V-C90-1M | 2,400K | 525lm/m | 10W/m(3W/ft) | |
| FN360 27K-24V-C90-1M | 2,700K | 517lm/m | ||
| FN360 30K-24V-C90-1M | 3,000K | 529lm/m | ||
| FN360 35K-24V-C90-1M | 3,500K | 600lm/m | ||
| FN360 40K-24V-C90-1M | 4,000K | 556lm/m | ||
| FN360 50K-24V-C90-1M | 5,000K | 604lm/m | ||
| FN360 60K-24V-C90-1M | 6,000K | 586lm/m | ||
| FN360 SD-24V-C90-1M | 2,700K~5,000K | 518lm/m | ||
| FN360 RGB-24V-1M | Red | 620-625nm | 246lm/m | |
| Green | 515-525nm | 502lm/m | ||
| Blue | 460-465nm | 112lm/m | ||
- - IP Rate : IP65
- - Lamp Power : 10 W/m (3W/ft)
- - Power Input : 24V DC
- - Color Rendering : Ra > 90
- - Operating Temperature Ranges : -25°C to +45°C(-13℉ to 140℉)
- - Minimum Length : 5M(16.4ft)

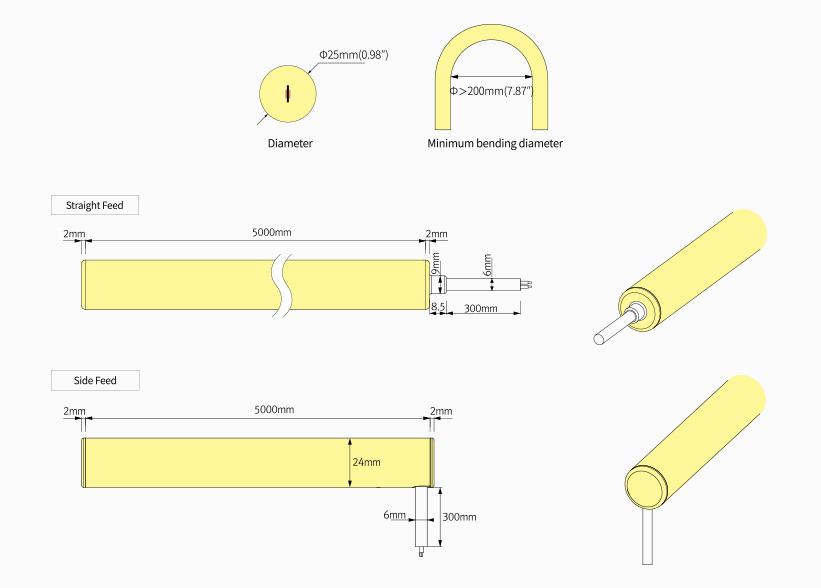

- - Dimension : Ø25mm (Ø0.98”)
- - Cuttable : 50mm (1.97”)
- - Minimum bending Diameter : 200mm (7.87”)
- - Material : Silicone
- - Beam Angle : 360°
 |
FLXible Neon 360 Straight Feed | FN360 (color)K-24V-C90-5M FN360 (color)K-24V-C90-4M FN360 (color)K-24V-C90-3M FN360 (color)K-24V-C90-2M FN360 (color)K-24V-C90-1M |
|---|---|---|
 |
FLXible Neon 360 Side Feed | FN360 (color)K-24V-LS-C90-5M FN360 (color)K-24V-LS-C90-4M FN360 (color)K-24V-LS-C90-3M FN360 (color)K-24V-LS-C90-2M FN360 (color)K-24V-LS-C90-1M |
 |
Mounting Bracket | FN360-BRACKET1 |
 |
Mounting Extrusion | FN360-EXL |
 |
Hanging Bracket | FN360-BRACKET1, SK1 |
 |
Rigid Hanging Bracket | FN360-BRACKET1, SK2 |
 |
Hanging Extrusion | FN360-EXL, SK1 |
 |
Rigid Hanging Extrusion | FN360-EXL, SK2 |
 |
Vertical Surface Mounting | FN360-SV-PENDANT |
 |
Vertical Double Surface Mounting | FN360-SU-PENDANT |
 |
Vertical Hanging Mounting | FN360-V-PENDANT |
 |
Side Feed Connecting | FN360-CPL2 |
 |
End to End Connecting | FN360-CPL |
 |
FN360-END CAP End cap accessory for field cutting |
Silicone End cap |
 |
FLS-P24V | Occupancy sensor |
 |
FLS-M24V | Door and motion sensor |
 |
FLM-Z1 | Wireless Control (Zigbee Switch) |
 |
LED Drivers | FLC30-24V/T FLC75-24V/T With distributor and power cord 1800mm (6′) |
 |
LED Drivers | FLC200-24V/T (200W) with 12way disributor |
 |
Dimming Interface | FDC-L10 Max. 100W (100W/CH, 1CH) 0 -10V Signal |
 |
Dimming Interface | FDA-L2MO (0-10V/1-10V, DMX512) Max. 200W (100W/CH, 2CH) FDA-L5M (DMX512) Max. 200W (50W/CH, 5CH) |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
