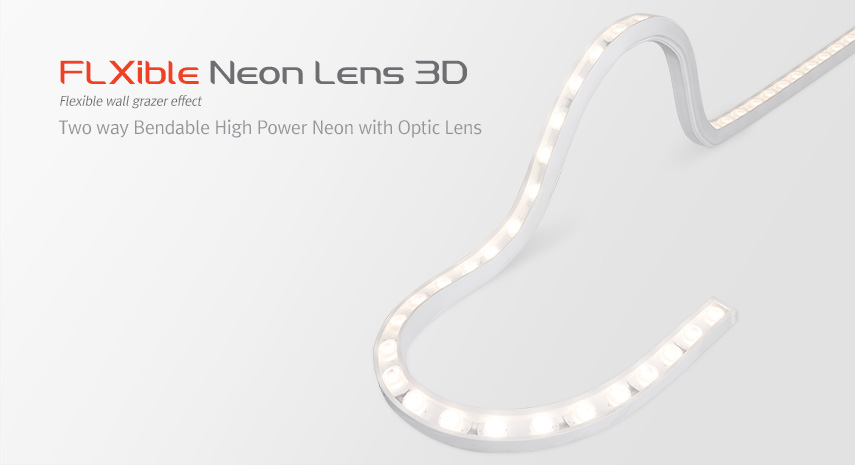

FLXible Neon Lens 3D
- - Flexible luminaire with optics
- - Bending direction both horizontally and vertically
- - IP67 rating for outdoor and indoor application
- - 90+ CRI Standard
- - Various beam angles (20°, 35°, 45°, 20x40°)

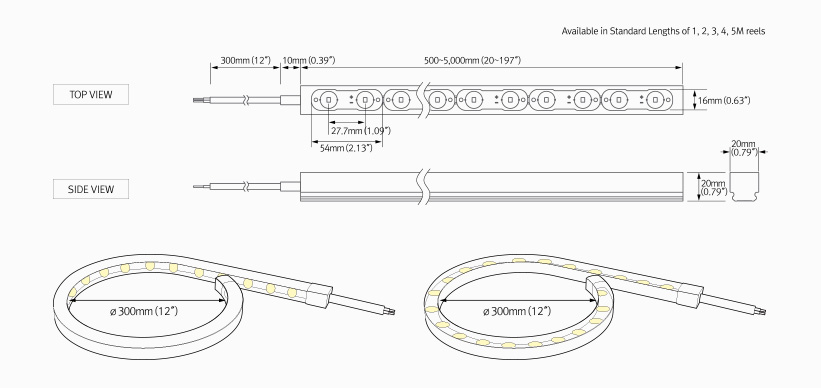

- - field-cuttable(55.4mm) for customized length
- - 20W per meter
| Model Name | Lumens | Color Temperature |
|---|---|---|
| FNL 3D 27K-24V-C90 | 61 lm/W | 2,700K |
| FNL 3D 30K-24V-C90 | 75 lm/W | 3,000K |
| FNL 3D 40K-24V-C90 | 77 lm/W | 4,000K |
| FNL 3D 65K-24V-C90 | 80 lm/W | 6,500K |
- - Power Input : DC 24V
- - Lamp Power : 20W
- - Color Rendering : Ra > 90
- - Operating Temperature Ranges : -10℃ to 50℃
- - Beam Angle : 20°, 35°, 45°, 20x40°
- - Material : Silicon
 |
FLXible Neon Lens 3D | FNL 3D-40K-24V-C90 (1M) FNL 3D-40K-24V-C90 (2M) FNL 3D-40K-24V-C90 (3M) FNL 3D-40K-24V-C90 (4M) FNL 3D-40K-24V-C90 (5M) |
||||||
|---|---|---|---|---|---|---|---|---|
 |
FLXible Neon Lens 3D Extrusion Line | FNL 3D-EXL (1M) | ||||||
 |
FNL 3D Flexible Extrusion | FNL 3D-EXL-FLEX (1M) | ||||||
 |
FNL 3D Antiglare Flexible Extrusion | FNL 3D-EXL-FLEX-AG (1M) | ||||||
 |
FLXible Neon Lens 3D Mounting Bracket | FNL 3D-BRACKET1 (1set = 4pcs) | ||||||
 |
FLXible Neon Lens 3D Angle Bracket | FNL 3D BRACKET2 (1set = 4pcs) for FNL 3D and FNL 3D-EXL (1M) | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W DC24V) | LED Driver With 12way distributor | ||||||
 |
Dimming Interface (0-10V) | FDC-L10: Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) | ||||||
 |
Dimming Interface (Dali) | FDD-L1DA: Max. 200W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (Zigbee) | FDD-L2Z : Max. 200W (100W/CH, 2CH) | ||||||
 |
Switch (Zigbee) | FSM-Z1 : Wireless Control | ||||||
 |
END CAP | FNL 3D-END CAP |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
