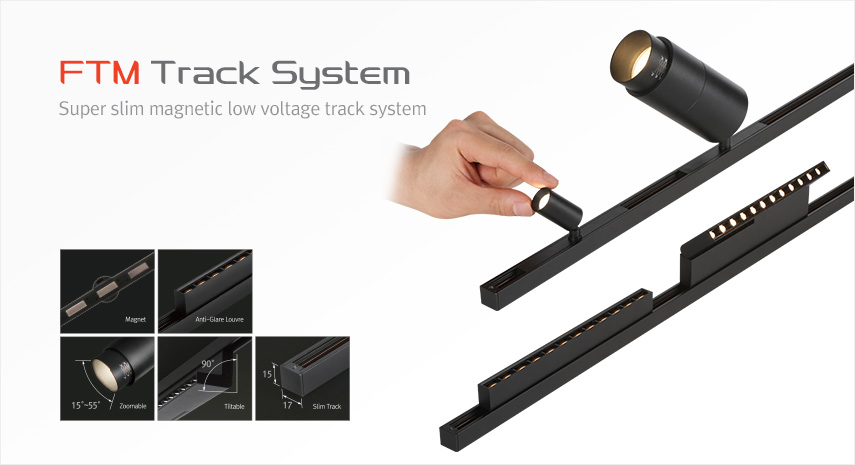

FTM Track System

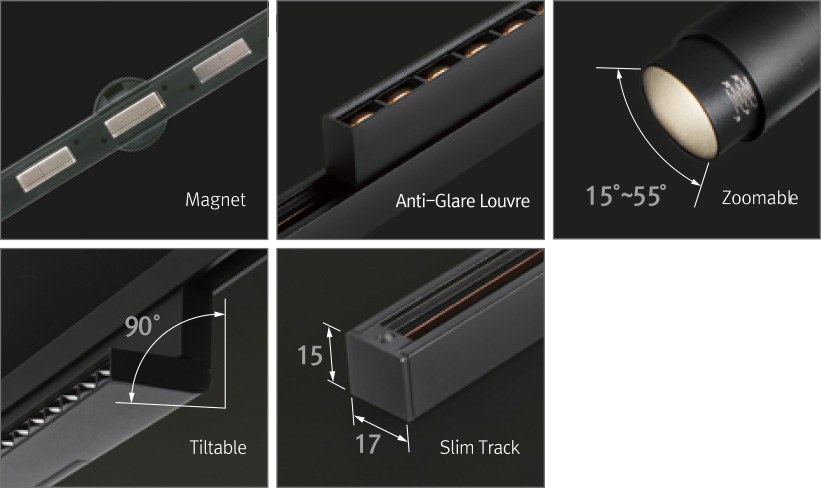

- - Ultra slim fixtures on easy magnetic rail system
- - Adjustable beam angle by zoom function
- - Available tilting up to 90°
- - Safe with constant voltage DC 48V

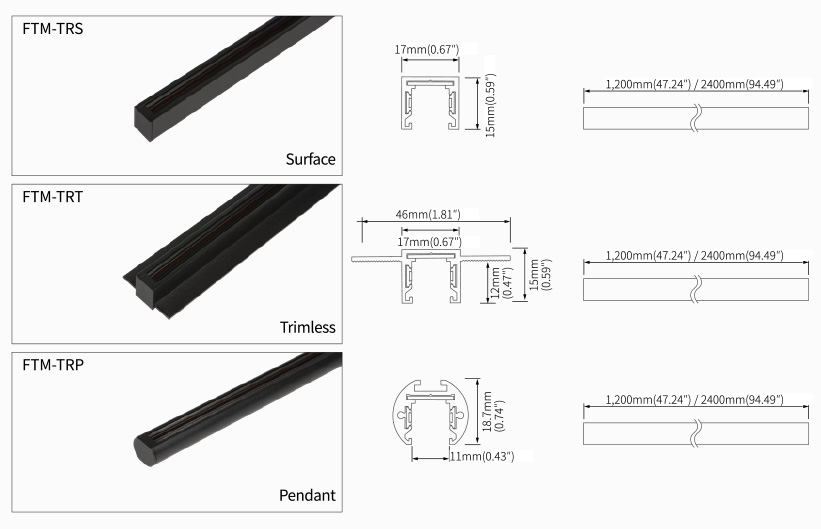

- - Various Track options (Surface, Trimless and Pendant mount track available)
| Model Name | Lamp Power | Luminous Flux | Efficiency | Beam Angle |
|---|---|---|---|---|

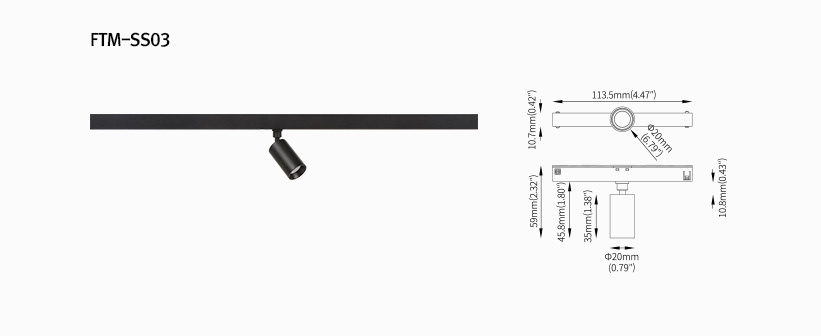

| FTM-SS03 40K-48V | 3 W | 208.3 lm | 69.06 lm/W | 15°/24°/36° |

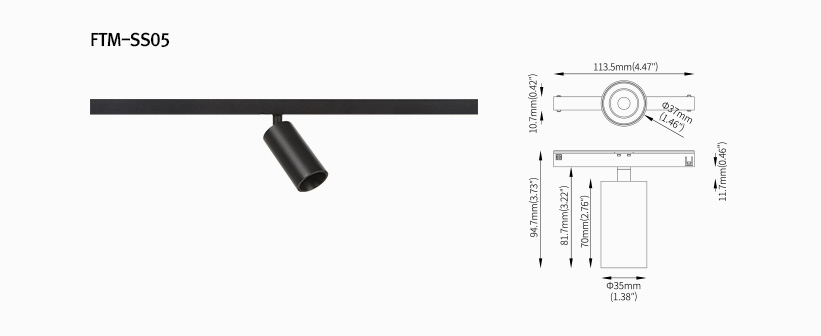

| FTM-SS05 40K-48V | 5 W | 405.8 lm | 71.6 lm/W | 15°/24°/36° |

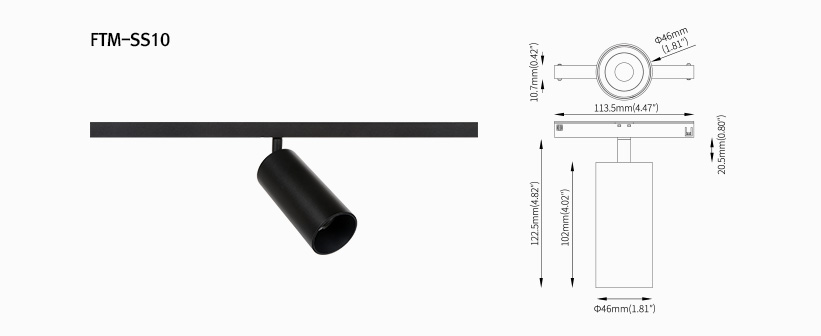

| FTM-SS10 40K-48V | 10 W | 855.3 lm | 85.64 lm/W | 15°/24°/36° |

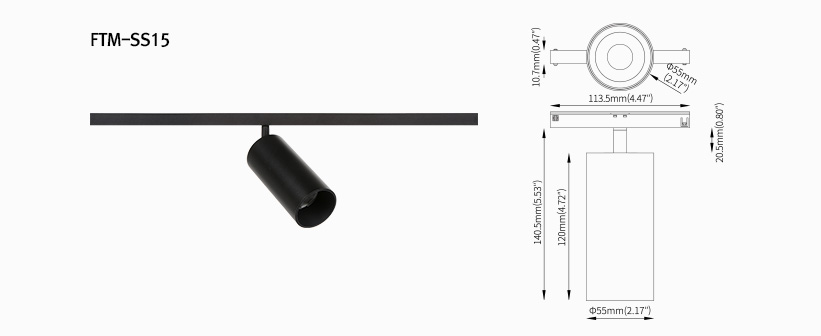

| FTM-SS15 40K-48V | 15 W | 1,077.6 lm | 78.14 lm/W | 15°/24°/36° |

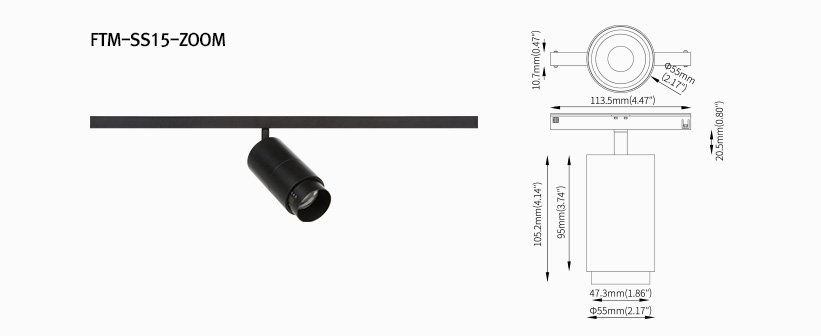

| FTM-SS15 40K-48V-ZOOM | 15 W | 1,089.8 lm | 74.28 lm/W | 15°~55° |

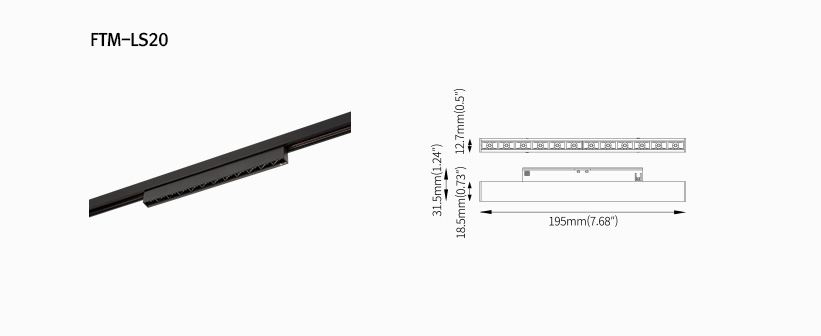

| FTM-LS20 40K-48V | 10 W | 521.5 lm | 52.31 lm/W | 24°/36° |

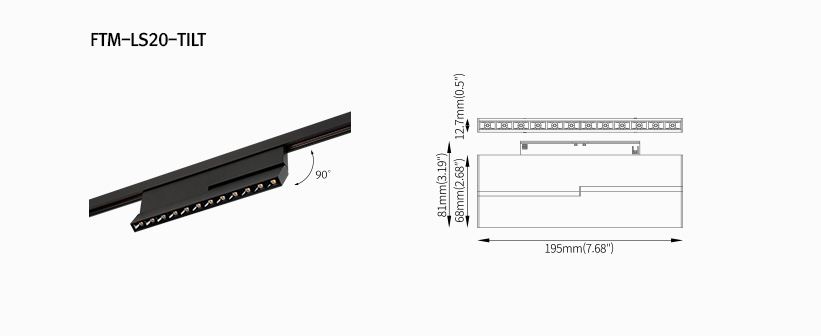

| FTM-LS20 40K-48V-TILT | 10 W | 496.8 lm | 50.56 lm/W | 24°/36° |

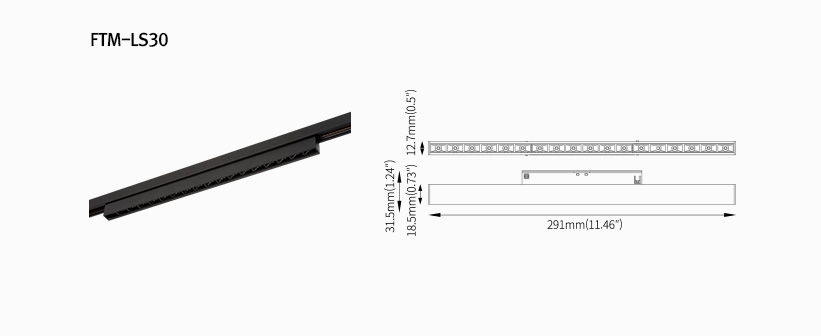

| FTM-LS30 40K-48V | 15 W | 713.7 lm | 51.06 lm/W | 24°/36° |

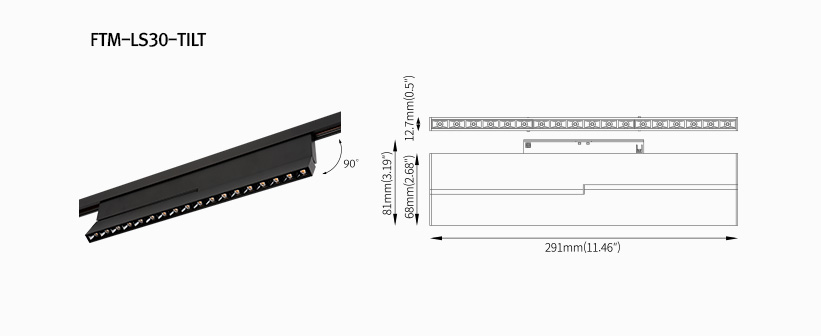

| FTM-LS30 40K-48V-TILT | 15 W | 733.2 lm | 53.17 lm/W | 24°/36° |

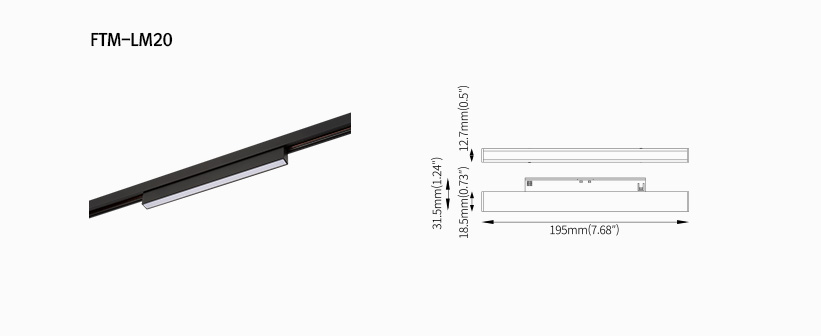

| FTM-LM20 40K-48V | 10 W | 475.4 lm | 47.91 lm/W | 110° |

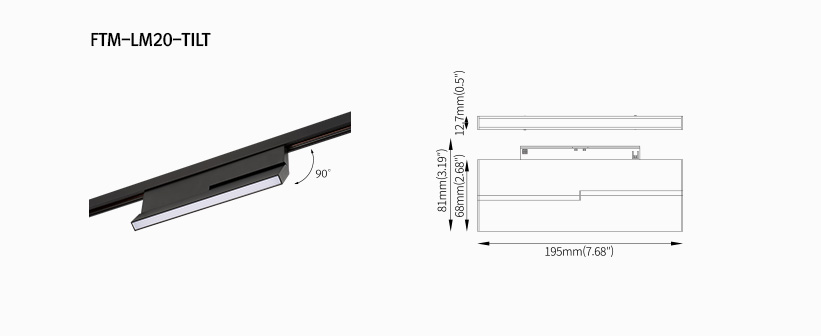

| FTM-LM20 40K-48V-TILT | 10 W | 455.1 lm | 45.17 lm/W | 110° |

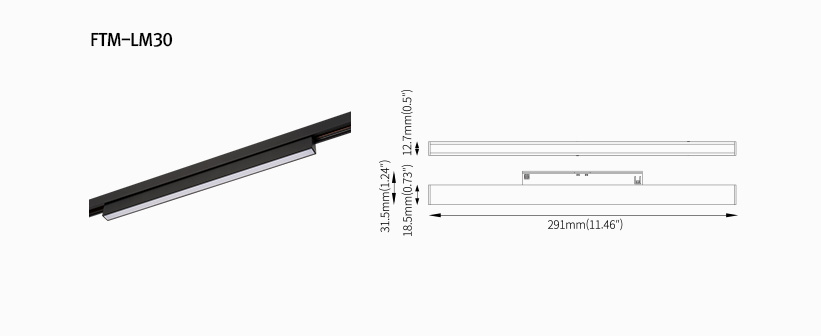

| FTM-LM30 40K-48V | 15 W | 724.5 lm | 52.42 lm/W | 110° |

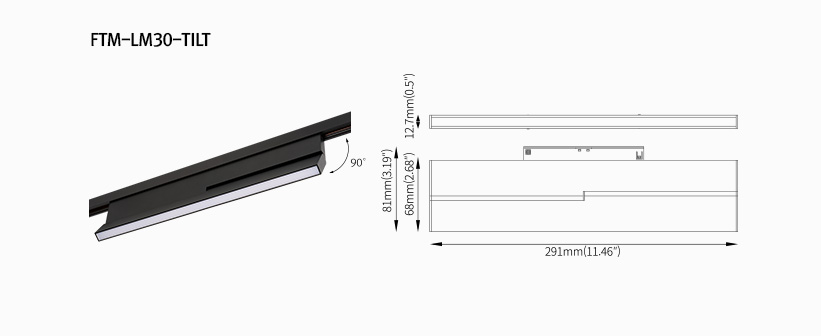

| FTM-LM30 40K-48V-TILT | 15 W | 710.5 lm | 53.38 lm/W | 110° |
- - Power Input : DC 48V
- - Color Rendering : Ra > 90
- - Color Temperature(CCT) : 2,700K/3,000K/4,000K
- - Operating Temperature : 0 ~ 45°C (32-113°F)
 |
Power Connector | FTMOPC-BK, FTMOPC-WT |
|---|---|---|
 |
Direct Connector | FTMCPL |
 |
Joint Bracket for FLT Mini Track | FTM-JOINT-BK |
 |
Flexible Connector | FTMPTC-BK, FTMPTC-WT |
 |
Suspension Power Kit for TRP | FTM-SK-POWER-BK |
 |
LED Driver | FLC200-48V/T, FLC100-48V/T |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
