FTM-LM20-TILT
![FTM_Track_System](img/FTM_Track_System/main_LM20-TILT.jpg)
- - Ultra slim fixtures on easy magnetic rail system
- - Adjustable beam angle by zoom function
- - Available tilting up to 90°
- - Safe with constant voltage DC 48V
- - Various Track options (Surface, Trimless and Pendant mount track available)
![적용사례](img/FTM_Track_System/apply.jpg)
![적용사례](img/FTM_Track_System/info_00.jpg)
Model Name | Lamp Power | Luminous Flux | Efficiency | Beam Angle |
---|---|---|---|---|
FTM-LM20 30K-48-TILT | 10 W | 455.1 lm | 45.17 lm/W | 110˚ |
- - Power Input : DC 48V
- - Color Rendering : Ra > 90
- - Color Temperature(CCT) : 2,700K/3,000K/3,500K/4,000K
- - Operating Temperature : 0 ~ 45°C (32-113°F)
![규격](img/FTM_Track_System/standard_LM20-TILT.jpg)

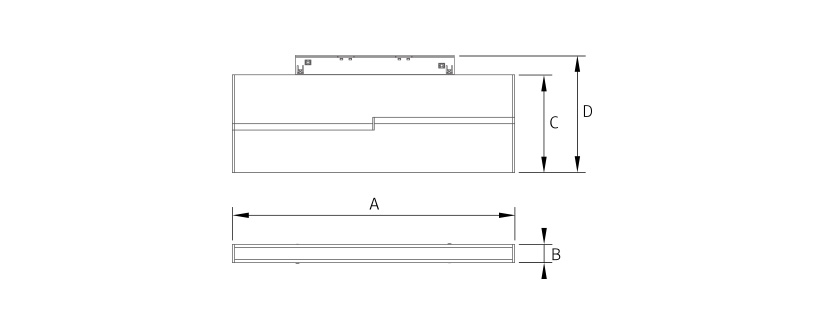

Model Name | A(mm) | B(mm) | C(mm) | D(mm) |
---|---|---|---|---|
FTM-LM20 30K-48V-TILT | 195 | 12.7 | 68 | 85.5 |
Beam angle | Black | White |
---|---|---|
110˚ | FTM-LM20 30K-48V-TILT-BK-110 | FTM-LM20 30K-48V-TILT-WT-110 |
![적용사례](img/FTM_Track_System/dimension_00.jpg)
![적용사례](img/FTM_Track_System/dimension_01.jpg)
![]() |
Power Connector | FTMOPC-BK FTMOPC-WT |
---|---|---|
![]() |
Flexible Connector | FTMPTC-BK FTMPTC-WT |
![]() |
Direct Connector | FTMCPL-BK FTMCPL-WT |
![]() |
Joint Bracket for TRS1, TRT1, TRP |
FTM-JOINT1-BK |
![]() |
Joint Bracket for TRS2, TRT2, TRP |
FTM-JOINT2-BK |
![]() |
Suspension Power Kit for TRP | FTM-SK-POWER-BK |
![]() |
LED Driver FLC200-48V/T (200W DC48V) |
LED Driver : FLC100-48V/T(100W DC48V) LED Driver With 12way distributor |
![]() |
Dimming Interface (0-10/1-10V) |
FDD-L20 Max. 400W (200W/CH, 2CH) |
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 48V LED Max. 400W (200W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 48V
• Wiring
![제품결선도](img/Dimming_System/Other_system_Interface_DC/dia_07.jpg)
![설치방법](img/FTM_Track_System/ins.jpg)
