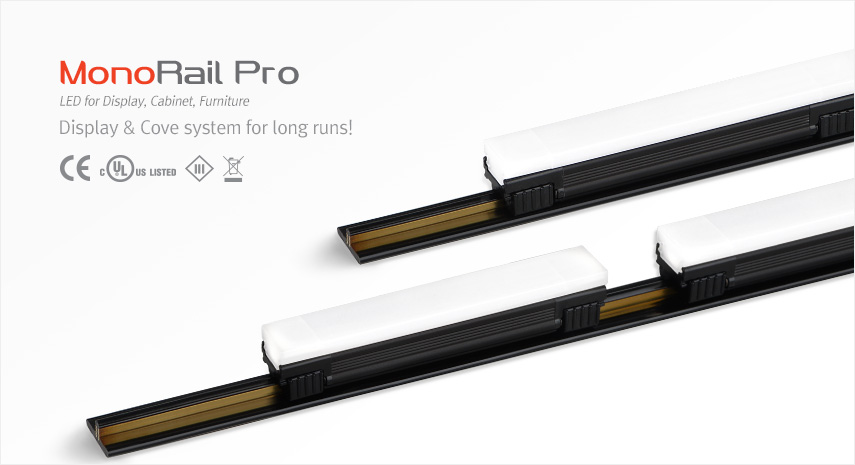

MonoRail Pro
- - Super Slim linear with power track
- - Greatly extends the length of a run with a single power point
- - Fixtures snaps onto power track with no breaks in light output
- - Available in silver, black
- - To be used with constant voltage DC 24V driver
- - Dimmable with available accessories
Various options
Max. connection MonoRail : 180W in one row (Single power feed) / LED Driver
| Model Name | Max. units for LED Driver | ||
|---|---|---|---|
| 24V/30W | 24V/75W | 24V/200W | |
| MNP1 40K-24V | 21 | 53 | 114 |
| MNP4 40K-24V | 7 | 17 | 37 |
| MNP8 40K-24V | 3 | 9 | 18 |

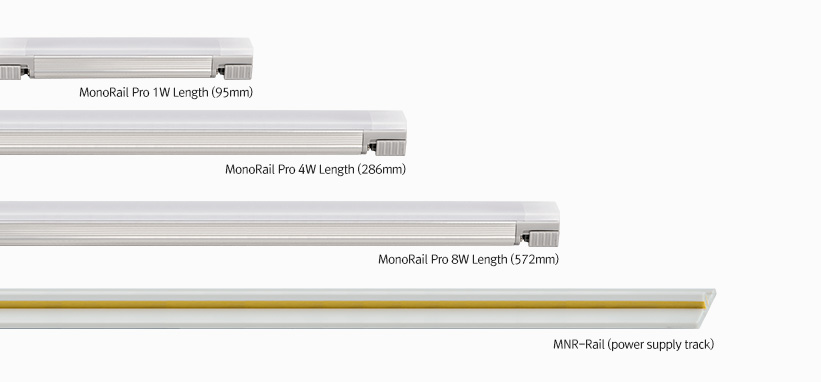

| Model Name | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| MNP1 40K-24V-C90 | 1.4 W | 113 lm | 79 lm/W |
| MNP4 40K-24V-C90 | 4.3 W | 362 lm | 84 lm/W |
| MNP8 40K-24V-C90 | 8.5 W | 722 lm | 85 lm/W |
- - Power Input : DC24V
- - Color Rendering : Ra > 90
- - Available Color : 2,700K/3,000K/3,500K/4,000K/5,700K
- - Operating Temperature : 0 ~ 45℃

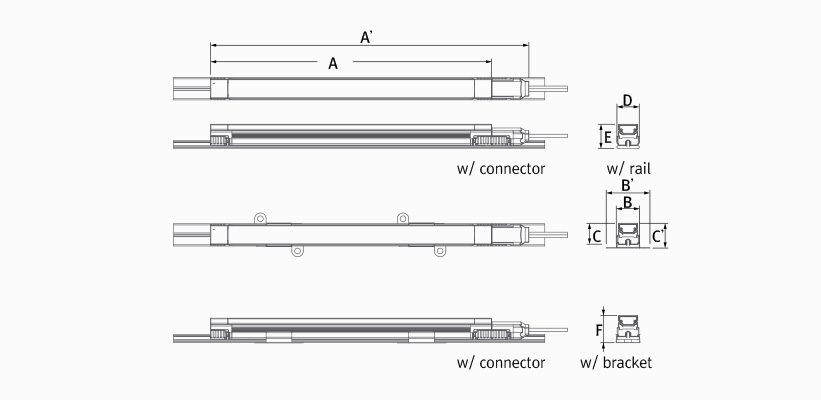

| Model Name | Power Input (V) | Lamp Power (W) | A (mm) |
A' (mm) |
B (mm) |
B' (mm) |
C (mm) |
C' (mm) |
D (mm) |
E (mm) |
F (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MNP1 40K-24V-C90 | DC 24 | 1.4 | 95 | 121 | 15.3 | 30.6 | 14.8 | 17.4 | 15.6 | 17 | 17 |
| MNP4 40K-24V-C90 | DC 24 | 4.3 | 286 | 312 | 15.3 | 30.6 | 14.8 | 17.4 | 15.6 | 17 | 17 |
| MNP8 40K-24V-C90 | DC 24 | 8.5 | 572 | 598 | 15.3 | 30.6 | 14.8 | 17.4 | 15.6 | 17 | 17 |

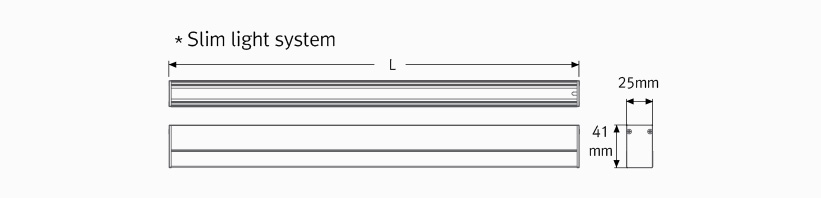

| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |

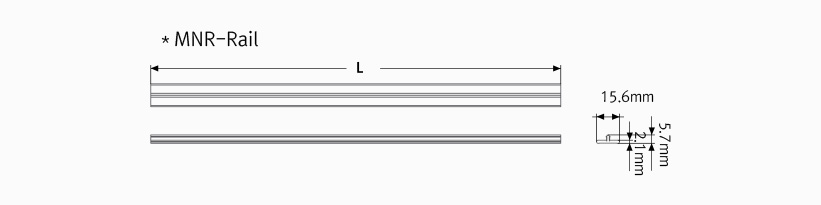

Power supply track : MNR-Rail (20m) | Power supply track in Roll without adhesive Color : White, Gray, Black |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power supply track : MNR-Rail (1.2m) | Power supply track with adhesive tape Color : White, Gray, Black |
||||||||||
 |
Adhesive tape | Adhesive tape for MNR-Rail (16.5 m) | ||||||||||
 |
Power supply cable to the MNR-Rail : MNRPC (2500mm) | 120W in one row (w/ terminal block) 180W in one row (w/o terminal block) * Available Color : Gray, Black |
||||||||||
 |
Connecting cable between MNR-Rail |
* Available Color : Gray, Black |
||||||||||
 |

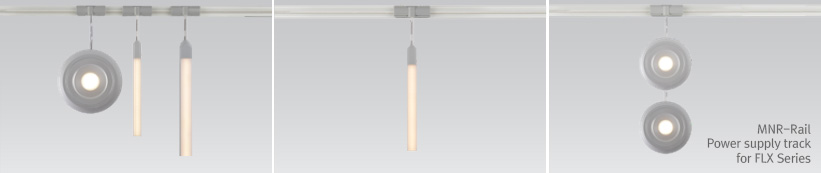

Connecting cable between MNR-Rail and FLX Stix NDP : MNRPTC-NDP |
* Available Color : Gray, Black |
||||||||||
|
Connecting cable between MNR-Rail and FLX Stix HDP : MNRPTC-HDP |
* Available Color : Gray, Black |
||||||||||
|
Connecting cable between MNR-Rail and FLX Stix NDV : MNRPTC-NDV |
* Available Color : Gray, Black |
||||||||||
 |
Connecting cable between MNR-Rail and FLIX Stix HDV&DDV : MNRPTC-HDV |
* Available Color : Gray, Black |
||||||||||
 |
Connecting cable between MNR-Rail and FLX Spot DVS : MNRPTC-DVS |
* Available Color : Gray, Black |
||||||||||
 |
Sidefeed for seamless extension (1W) : MNP1 40K-24V-C90-S | 120W in one row | ||||||||||
 |

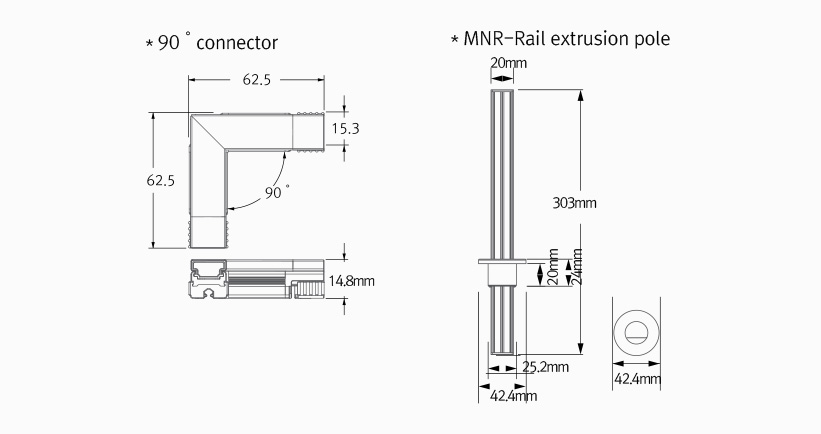

90˚connector : MNP1 40K-24V-C90-90 | MonoRail90˚connector (1W) 120W in one row |
||||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor Spec | ||||||||||
 |

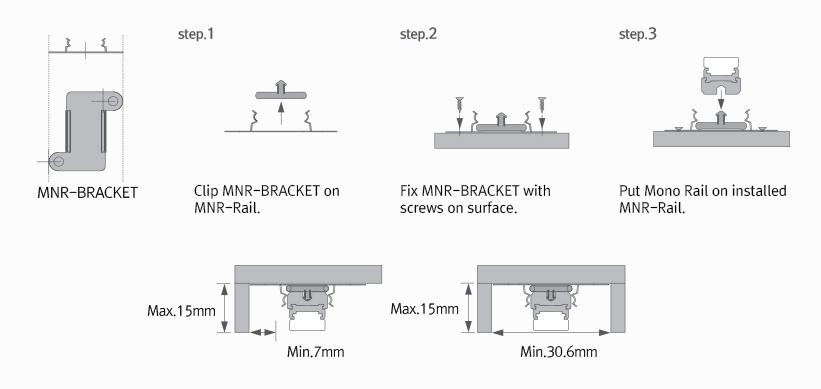

Bracket : MNR-BRACKET (standard) | |||||||||||
 |
Bracket : MNR-BRACKET1 (optional) | |||||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||||
 |
Dimming Interface (0-10/1-10V, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||||||
 |
Dimming Interface (Dali): FDD-L1DA | Max. 200W (100W/CH, 1CH) | ||||||||||
 |

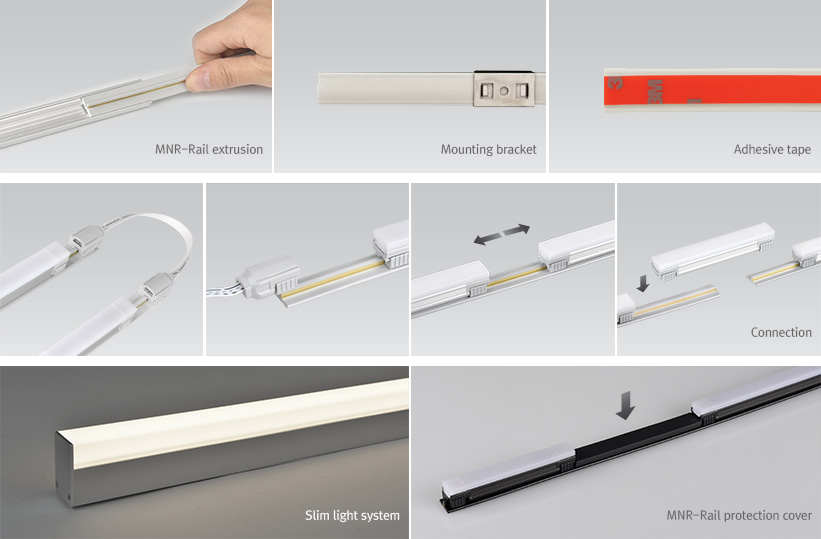

MNR-Rail Extrusion Surface (1,200mm) Without MNR-Rail |
|
||||||||||
 |

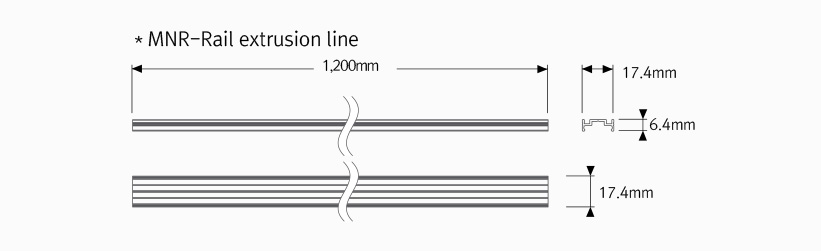

MNR-Rail extrusion line (1.2m) Without MNR-Rail |
|
||||||||||
 |

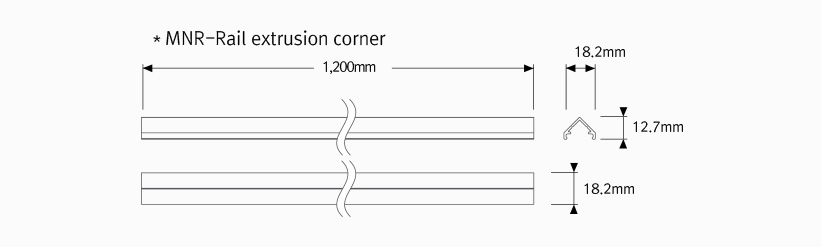

MNR-Rail extrusion corner (1.2m) Without MNR-Rail |
|
||||||||||
 |
MNR-Rail extrusion pole (300mm) With MNR-Rail |
|
||||||||||
 |
MNR-Rail protection cover : MNR-Rail cover | Color : White, Gray, Black | ||||||||||
 |
Fixture Remover : NMP-REMOVER | |||||||||||
 |
End cap : MNR-CAP | Color : White, Gray, Black |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
